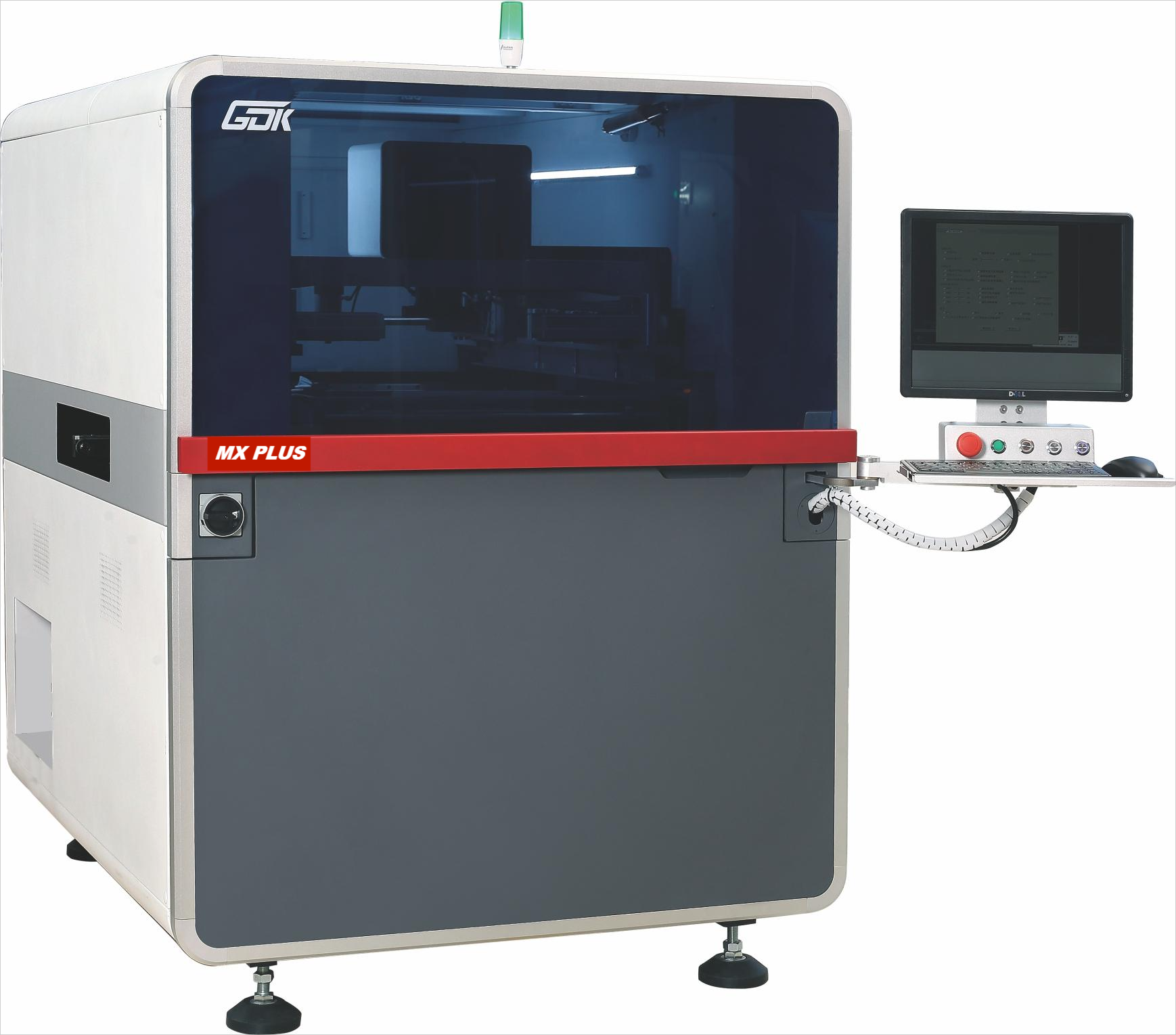

MX PLUS automatic solder paste printer is a product aimed at the-high-end application of SMT, especially for precision boards of 01005 or below, it has better molding and soldering volume. It can be placed back to back or used by a single machine. Printing range is 510mmx510mm.

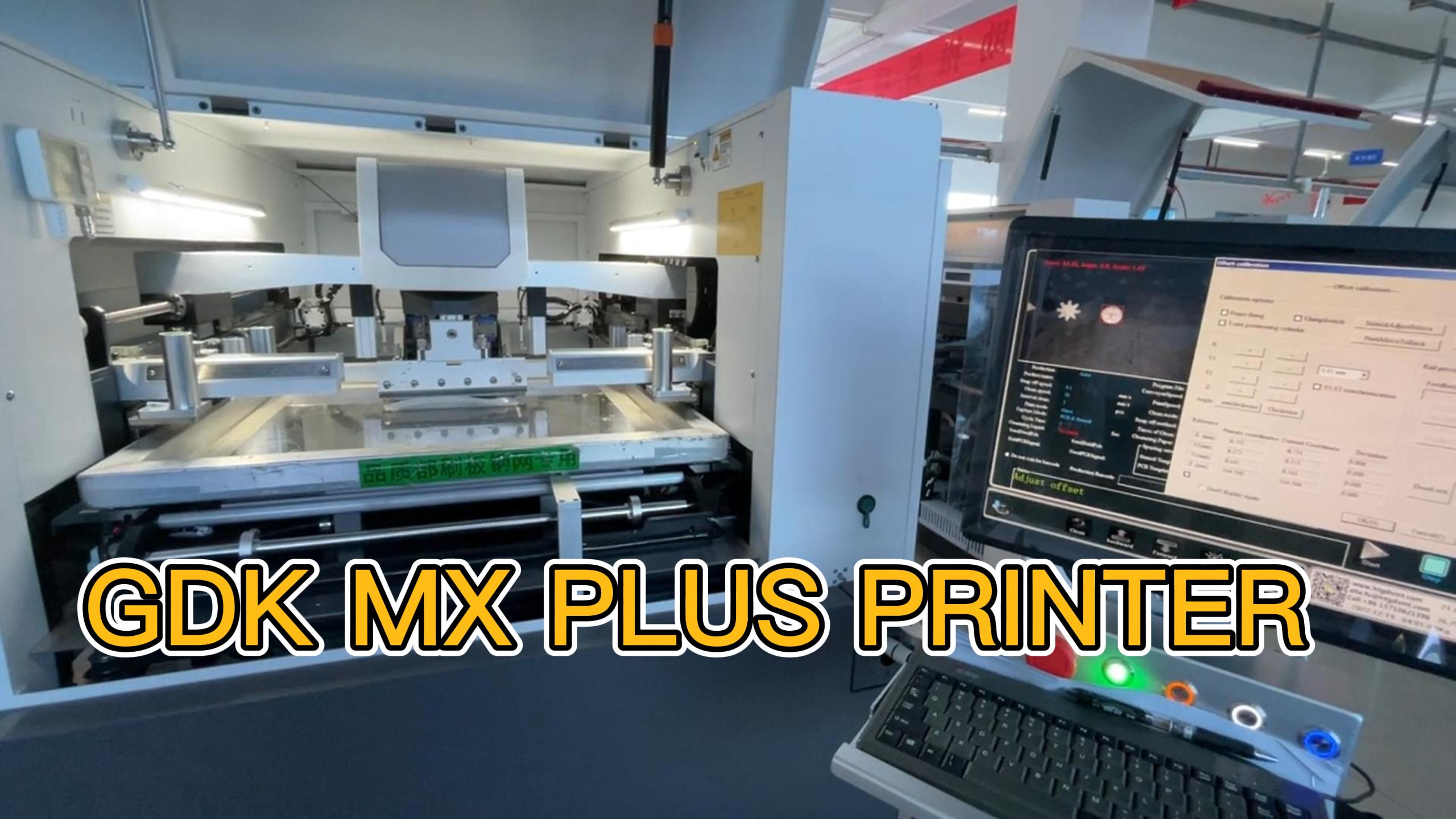

China Original Factory HTGD (brand: GDK) New SMT Machine Automatic Visual Solder Paste Stencil Printer PCB Screen Printing Machine
Production Overview:
MX PLUS automatic solder paste printer is a product aimed at the-high-end application of SMT, especially for precision boards of 01005 or below, it has better molding and soldering volume. It can be placed back to back or used by a single machine. Printing range is 510mmx510mm.
With CE Certificate/ Award Certificate/ Software work Certificate/ Software ework Certificat/ Certificate of Authorization.
Technical Parameters:
| PCB boarding Handling Paramater | |
| Max. board Size(X x Y) | 510mm x 510mm |
| Min. board Size(X x Y) | 50mm x 50mm |
| PCB thickness Range | 0.4mm~6mm |
| PCB Warpage | ≤1%Diagonal |
| Max. board weight | 3Kg |
| PCB edge clearance | Configuration to 3mm |
| PCB bottom clearance | 20mm |
| Conveyor speed (Max.) | 1500mm/s(Max) |
| Conveyor height | 900±40mm |
| Conveyor direction | L-R,R-L,L-L,R-R |
| Transfer mode | One stage Conveyor |
| PCB Clamping method | Automatic adjustment of PCB thickness + Programmable elastic side clamp (Option:1.Edge locking base plate pressing;2.Bottom integral cavity vacuum; 3.Bottom multi-point local vacuum) |
| Support method | Magnetic thimble + Equal high block.(Optional:1.vacuum suction cavity;2.special workpiece fixture) |
| Printing parameters | |
| Printing head | Floating intelligent printing head (two independent direct connected motors) |
| Stencil frame size | 470mm x 370mm~737 mm x 737 mm |
| Max. printing area(X x Y) | 510mm x 510mm |
| Squeegee Material/Angle | Steel squeegee/ Rubber squeegee(Angel 45°/50°/60° matching the printing process) |
| Squeegee length | 300mm+520mm(optional with length of 200mm-550mm) |
| Squeegee height | 65±1mm |
| Squeegee thickness | 0.25mm Diamond-like carbon coating |
| Print mode | Single or dual squeegee printing |
| Demoulding length | 0.02 mm - 12 mm |
| Print speed | 0 ~ 200 mm/s |
| Print pressure | 0.5kg - 10Kg |
| Print stroke | ±275 mm(From the center) |
| Cleaning parameters | |
| Cleaning system | 1.Programmable washer fluid injection system; 2. Dry, wet and vacuum modes |
| Length of cleaning and wiping board | 380mm+500mm(optional with 300mm, 450mm) |
| Optical System | |
| Field of view | 8mm x 6mm |
| Printing table adjustment range | X:±5.0mm,Y:±7.0mm,θ:±2.0° |
| Fiducial Types | Standard Fiducial type(Circle, triangle, square, diamond, cross)(SMEMA standard),solder pad/openings |
| Vision methodology | Independent camera,upwards/downwards imaging vision system,geometric matching location |
| Performance parameters | |
| Machine Alignment repeatability | ±10.0μm @6 σ,Cpk ≥ 2.0 |
| Full process repeatability | ±15.0μm @6 σ,Cpk ≥ 2.0 |
| Core Cycle time | 7.5s(Exclude printing and cleaning) |
| Product Changeover Time | <5min |
| Equipment | |
| Power supply | AC220V±10%,50/60HZ,15A |
| Air supply | 4~6Kg/cm² |
| Air Consumption | About 5L/min |
| Operating system (OS) | Windows XP (Option Win 7 & WIN10) |
| External dimension | 1220mm(L) x1480mm(W) x 1530mm(H)(Without light,monitor and keyboard) |
| Machine weight | Appro.1150Kg |
| User Permission | Different users have different permissions (fingerprint identification entering / password input) |
| Environment temperature | 23±3°C |
| Relative humidity | 45~70%RH4 |

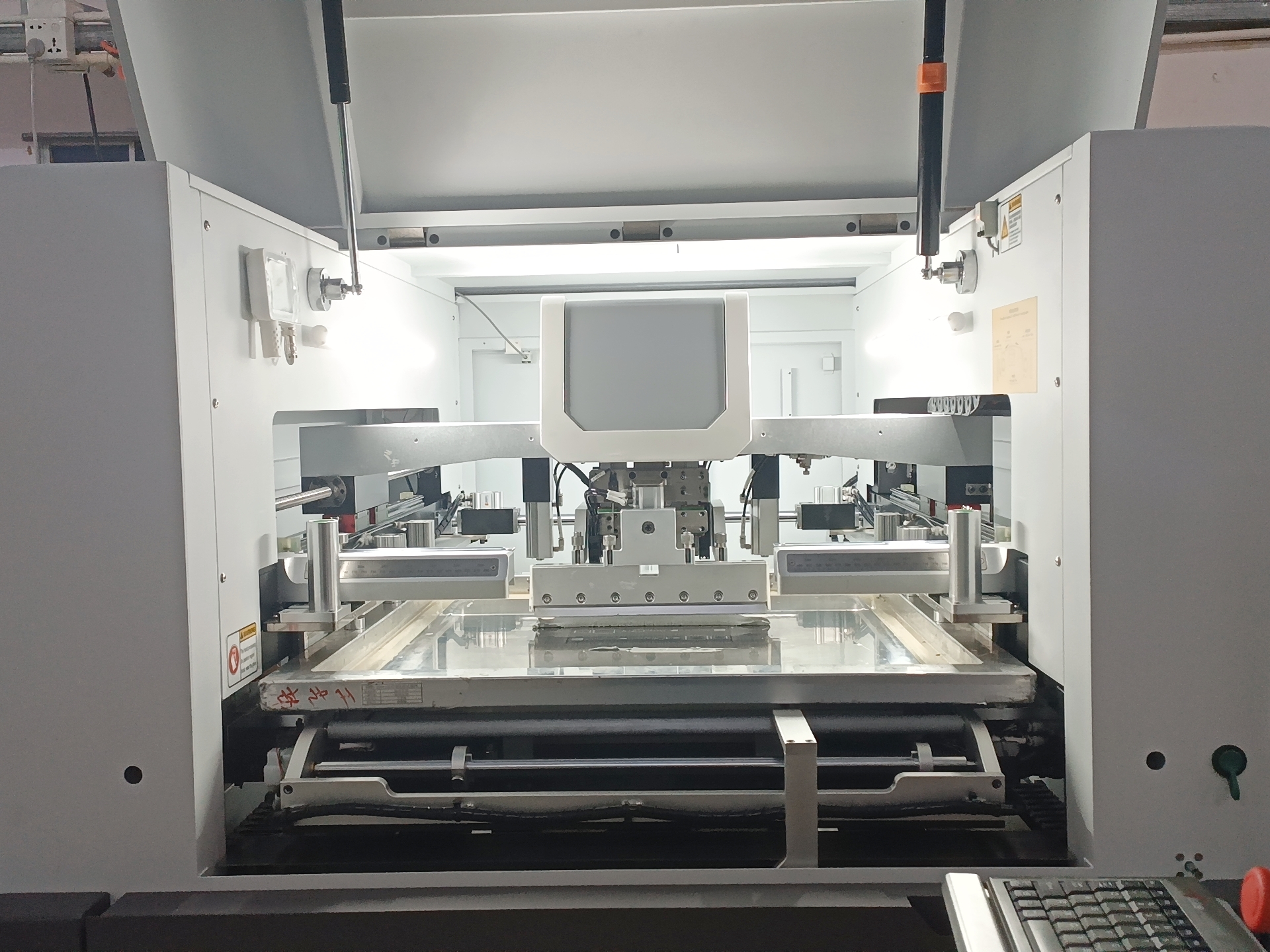

Standard Configuration:
 |
| 1. Accurate optical positioning system Adjustable four light sources, light intensity is adjustable,light is uniform, and image acquisition is more perfect; Good identification (including uneven mark points), apply for tinning,copper plating, Gold plating,tin spraying,FPC and other types of PCB with different colors. 2. High efficiency and high adaptability stencil cleaning system The new wiping system ensures full contact with the stencil and large vacuum suction,Ensure to eliminate the solder paste in the mesh, create an anti-static stick roller,and completely remove The solder paste adsorbed in the stencil and mesh truly realizes the effective automatic cleaning function. 3. Printing axis servo drive Squeegee Y axis servo with screw drive, higher accuracy, more stable operation, extended service life provides a good printing control platform for customers. 4. Intelligent squeegee system Intelligent programmable setting, two independent direct motors driven squeegee, built-in precise zero pressure detection system. 5. Simple and reliable PCB positioning system The platform height is automatically calibrate d according to PCB thickness setting, which is intelligent, fast,simple and reliable in structure. 6. 2D solder paste printing quality inspection and SPC analysis 2D function for offset, less tin, leakage, tin connection and other printing problems can be quickly detected,the detection point arbitrary increase;The SPC software can analyze the samples collected by the machine CPK index ensures printing quality. |
Available Options Configuration:
 |
1. Automatic solder paste filling function Regular and fixed point automatic addition of solder paste,to ensure the quality of solder paste and the amount of solder paste in the stencil. In order to ensure that the customer can carry out the quality of stable and continuous printing for a long time, improve productivity. Can be real-time monitoring the roll diameter of the solder paste on screen trigger automatically add functionality 2. Detection function of solder paste margin of stencil Real time detection of solder paste margin (thickness) on stencil,intelligent prompt for tin filling 3. Detection functionof Stencil plugging By compensating the light source above the stencil, CCD is used to check the mesh in real time,so as to quickly detect and judge whether the stencil is blocked after cleaning,and carry out automatic cleaning, which is a supplement to the 2D detection of PCB. 4. Automatic dispensing function According to different printing process requirements, PCB can be accurately dispensing tin,line drawing,filing and other functional operations after printing. 5. Squeegee pressure close-loop feedback control Built in precise digital pressure sensor control system, through the squeegee pressure feedback system, it can accurately display the original pressure value of the squeegee,intelligently adjust the depth of the squeegee pressure,ensure the constant pressure value inthe printing process and obtain the highest process control, and realize the perfect printing of high-density and fine spacing devices. 6. Temperature and humidity control function Automatic regulation and supervision of temperature and humidity in the printing press to ensure the stable physical characteristics of printing Materials. 7. Magnetic squeegee Magnetic adsorption squeegee blade,instead of screw hole positioning mode, convenient and quick replacement. 8. Vacuum suction plate and upperpress function It can automatically clamp PCB of various sizes and thicknesses to effectively overcome the deformation of the board,Make sure that the tin is evenly printed. 9. Support MES system seamless docking It can scan the 1D code 2D code on the customer PCB and record the relevant information.which can be shared with the customer MES system. MES system uses 2D code,1D code, mobile IOT and other technologies to conduct scientific management on the warehouse material preparation and prevention, incoming material picking management, material loading and error prevention,production scheduling,quality traceability,Kanban control,etc. in the SMT production process. Through the optimization process to improve the production efficiency,improve product quality,shorten the production cycle, reduce the manufacturing cost,to achieve a comprehensive and scientific traceability management,to help enterprises quickly respond to market changes, improve the core competitiveness. 10. SPI online function interface A closed-oop system is formed by connecting with SPI.After receiving feedback information of defective SPI printing, the machine will automatically adjust the offset according to SPI feedback. The XY offset can be adjusted automatically within 3PC.and clean the stencil, improve the printing quality and production efficiency,constitute a complete printing feedback system. |
Other Available Options Configuration:
| Item No. | Function |
| 1 | Paste Roll Height Monitor (aPRHM) |
| 2 | Internal temperature and humidity detection on the work area |
| 3 | Window 10 system |
| 4 | Upper Press Function |
| 5 | PCB Size 525 mm * 350 mm |
| 6 | PCB board support method Grid-Lock |
| 7 | Support pins or support block detection sensor |
| 8 | Squeegee holder |
| 9 | System of adding solder paste from cartridge Semko 6 Oz |
| 10 | Control - by touch screen monitor |
| 11 | PC must have (SSD) |
| 12 | Range of adjustment feets from 45 to 160 mm |
| 13 | 6.1 Software can save log-files 6. 2 Log-files contain data about all possible parameters of the equipment 6.3 Discreetness of data saving may be set up without limits 6.4 Export of log-files to Excel or Access 6.5 Alarm system in case of parameters are not correspond to preset parameters 6.6 Possibility of remote export of log files 6.7 For all parameters of the equipment there will be possibility of setting up of critical value of such parameters and further actions (means stoppage or further work with indication and information in separate log-file) with marks in log-files only in case of preset parameters will go beyond critical value. |
| 14 | UPS |
Company Information:
HTGD (GDK) is committed to take the professional line, to enrich the SMT professional and technical service experience, process improvement and effective solutions, rich practical experience to provide customers with appropriate and economical and reliable recommendations to meet the special needs of all types of customers. The company established a head office in Shenzhen and set up branch offices in Dongguan, Suzhou, Tianjin, Chongqing, Xi'an and Xiamen. At the same time, there are many branches and agents overseas, forming a strong distribution and service network in the world.
Major application range is SMT & PCB assembly, consumer electronics products, auto industry, LED assembly, medical electronics industry, etc.
- 1.Shenzhen HTGD Intelligent Equipment Co., Ltd established in 2008.
- 2.300+ staffs
- 3.2,000 sets machines production capability per year
- 4.Sales and service covers 35+ countries around the world.
- 5.Focus on design&research based on customer’s request
- 6.HTGD & GDK two brands
- 7.40,000 square meter advanced standard production workshop
- 8.ISO 9001 approval and CE certificate
- 9.More than 80 utility model patents and 5 invention patents
- 10.30000+ big customers in China, who are specialized in cell phone, home appliance spare parts, medical electrical parts, etc.
HTGD&GDK is focus on solder paste( screen printer), AOI, SPI, dispenser, loader, unloader, conveyor, reflow oven, design and produce, and provide SMT whole line service for customers around the world. Meanwhile provide THT whole line service too.

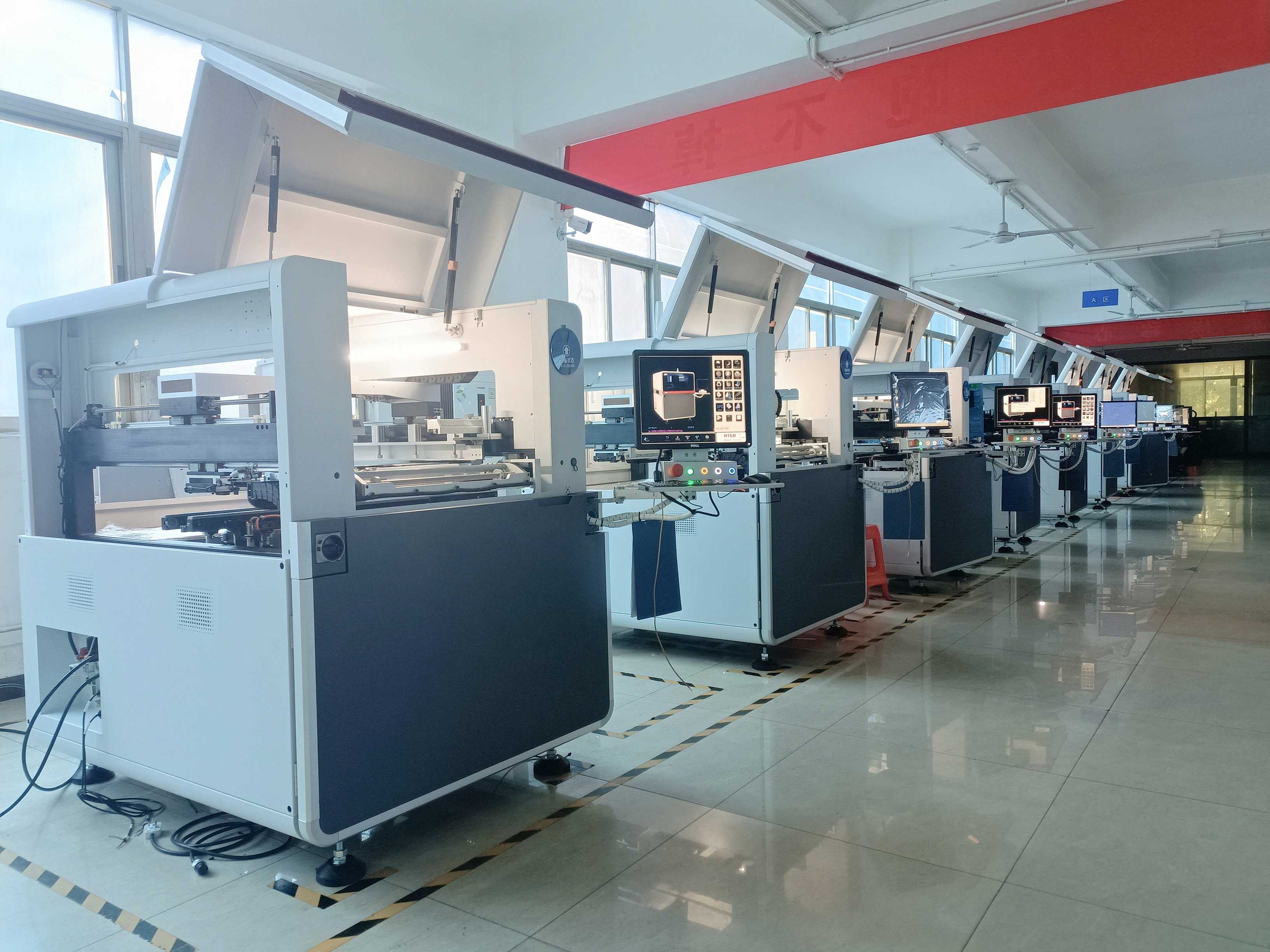

Production line:
10000 square meters standard modern standard precision equipment production work.
After-Sales Service:
Technical support:
# From the purchase date, one year free warranty, lifelong maintenance
# Provide technical update and technical service at any time
# Software system life - long free upgrade, to ensure the latest version of the software and perfect functions
# Provide technical training according to customer needs
Service support:
# Since the date of purchase, the customer has become a lifetime member of our company and enjoys the all-day waiting service
# Make phone calls and on-site visits to customers from time to time, communicate with customers and improve related problems in a timely manner
# Provide door-to-door service, one - on - one designated service policy
Advantage, Why choose us:
1. GDK,HTGD Self-branded famous manufacture around the world
2. Self developed and owned software, Company industry experience
3. 2000 sets production capability per year
4. CE,ISO,TUV certified company
5. We have many years of SMT sales, installation and after-sales service experience.
6. We have exported the whole line of SMT equipment in North America,South America, Europe, Southeast Asia, Middle East and other countries. Many of them are new customers starting from scratch.
7. We assist customers to train professional technicians and provide technical support at any time.
8. We solve all SMT problems for our customers.
