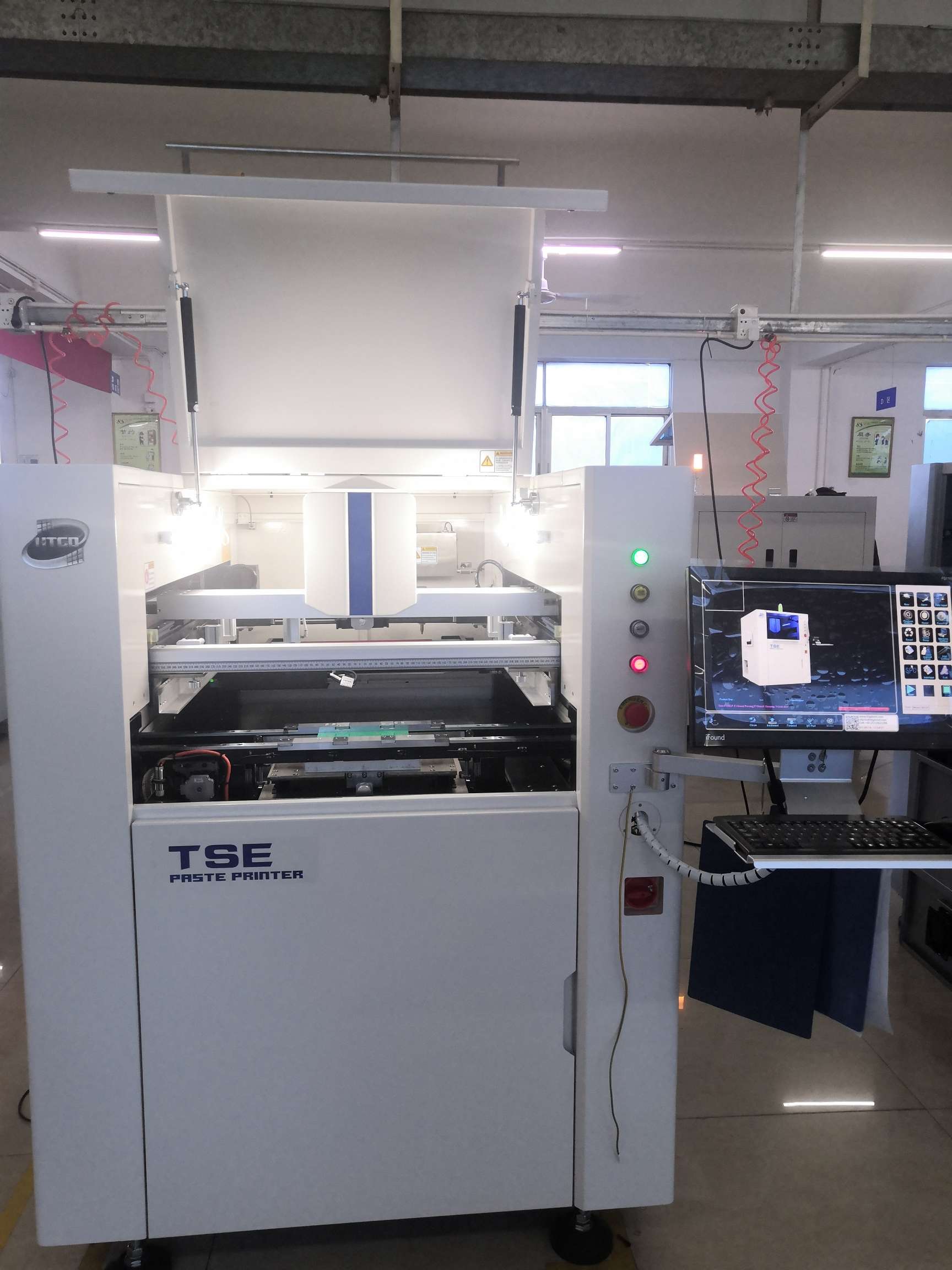

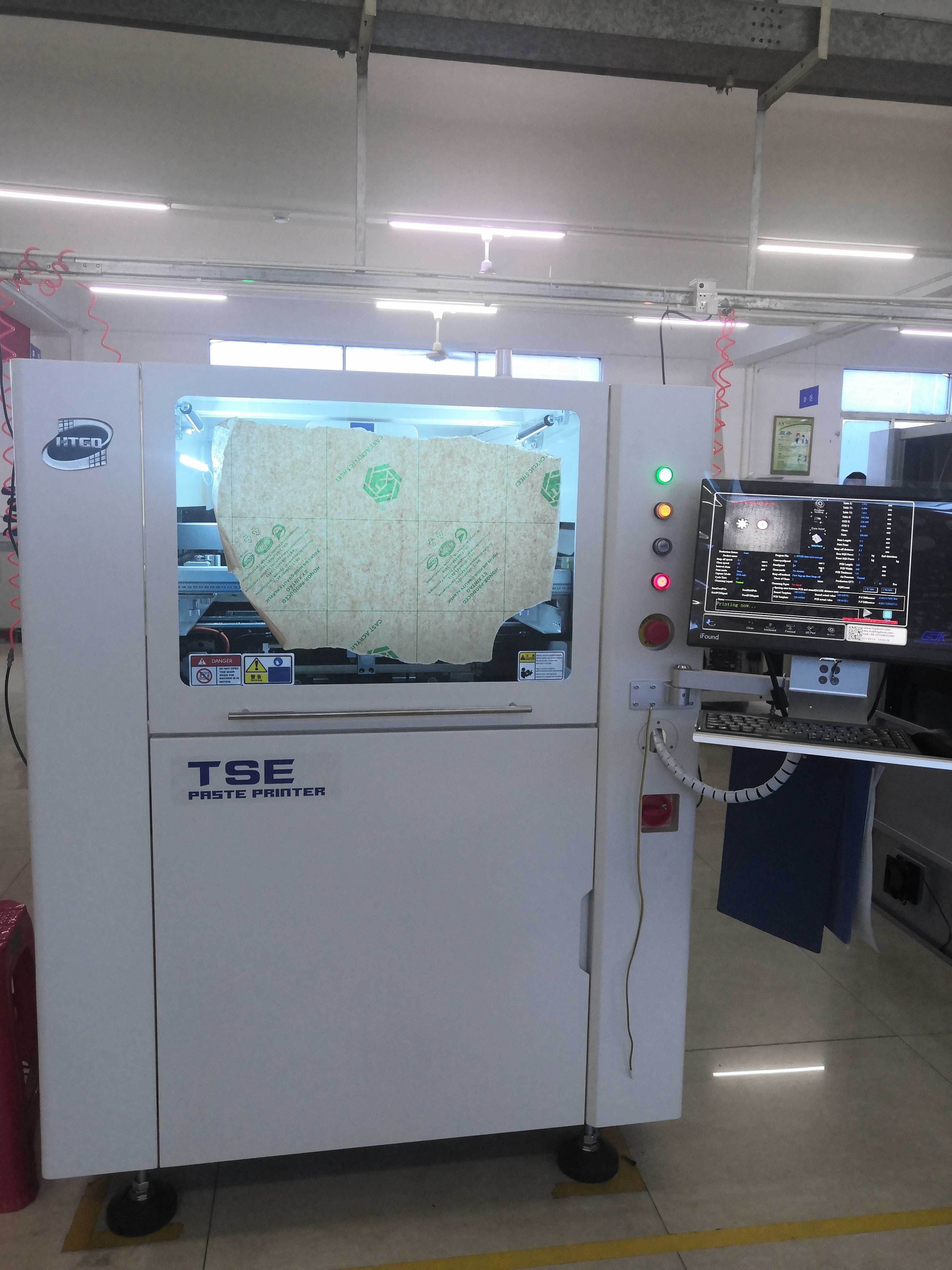

China HTGD SMT Fully Auto Printing Machine High Speed PCB Screen Printer for Production Line
Maximum Board Size(X X Y):450mm X 350mm
Template frame size: 470mm x 370mm~737 mm x   737 mm
Repetition precision of printing : ±20.0micron
features simple and reliable structure, accurate positioning, convenient use, high precision, high stability and high cost performance

China HTGD SMT Fully Automatic Printing Machine High Speed PCB Screen Printer For Production Line


Maximum Board Size(X X Y):450mm X 350mm
Template frame size: 470mm x 370mm~737 mm x   737 mm
Repetition precision of printing : ±20.0micron





Technical Parameters:

PCB parameters
Maximum board size(X x Y) 450mm x 350mm
Minimum board size(Y x X) 50mm x 50mm
PCB thickness 0.4mm~6mm
Warpage Max. PCB  ≤1%Diagonal
Maximum board weight 6Kg
Board margin gap Configuration to 3mm
Maximum bottom gap 20mm
Transfer speed 1500mm/s(Max)
Transfer height from the ground 900±40mm
Transfer orbit direction Left-Right,Right-Left,Left-Left,Right-Right
Transfer mode One stage orbit
PCB damping method Programmable flexible side pressure, (Optional: 1,Bottom integral suction cavity vacuum, 2.Multipoint partial vacuum at the bottom; 3. Edge locking and Substrate clamping)
Support method Magnetic thimble,  Equal high block,Vacuum suction cavity; Special workpiece fixture
Printing parameters
Printing head Linear motor type close loop printing head
Template frame size 470mm x 370mm~737 mm x   737 mm
Maximum printing area(X x Y) 450mm x 350mm
Squegee type Steel scraper/Glue scraper(Angel   45°/50°/60° matching the printing process)
Squegee length 220mm~ 500mm
Squegee height 65±1mm
Squegee thickness 0.25mm Diamond-like carbon coating
Printing mode Single or double scraper printing
Demoulding length 0.02 mm - 12 mm
Printing speed 0 ~ 200 mm/s
Printing pressure 0.5kg - 10Kg
Printing stroke ±200 mm (From the center)
Image   parameters
Field of view 6.4mm x 4.8mm
Platform adjustment range X.Y:±7.0mm,θ:±2.0°
Benchmark point type Standard shape benchmark point(SMEMA standard), solder pad/openings
Camera system Independent   camera,upwards/downwards imaging vision system
Performance parameters
Repetition precision of image calibration ±10.0micron @6 σ,Cpk ≥ 2.0
Repetition precision of printing ±20.0micron  @6 σ,Cpk ≥ 2.0
Cycle time <7s
Product changeover <5mins
Equipment
Power supply AC220V±10%,50/60HZ,15A
Air supply 4~6Kg/cm2, 10.0  Diameter of the tube
 Gas consumption  About 5L/min
Operating system Windows XP
External dimension 1140mm(L) x 1450mm(W) x 1480mm(H) (Without light,monitor and keyboard)
Machine weight  Around 1000Kg
Temperature and humidity control module(optional)
Environment temperature 23±3˚C
Relative humidity 45-70%RH4


Standard Configuration:

China HTGD SMT Fully Auto Printing Machine High Speed PCB Screen Printer for Production Line



1. Accurate optical positioning system
Four way light source is adjustable, light intensity is adjustable, light is uniform, and imag acquisition is more perfect; Good identification (including uneven mark points), suitable for tinning, copper plating,Gold plating, tin spraying, FPC and other types of PCB with different colors.

2. High efficiency and high adaptability stencil cleaning system
The new wiping system ensures full contact with the stencil ; three cleaning methods of dry, wet and vacuum, and free combination can be selected; soft wear-resistant rubber wiping plate, thorough cleaning, convenient disassembly, and universal length of wiping paper.

3. Intelligent squeegee system
Intelligent programmable setting, two independent direct motors driven squeegee, built-in precise pressure control system.

4. Simple and reliable PCB positioning system
Adaptive PCB board thickness, software tunable flexible side pressure and magnetic supporting device.


Available Options Configuration:

China HTGD SMT Fully Auto Printing Machine High Speed PCB Screen Printer for Production Line


1. Automatic solder paste filling function
Regular and fixed point automatic addition of solder paste,to ensure the quality of solder paste and the amount of solder paste in the stencil. In order to ensure that the customer can carry out the quality of stable and continuous printing for a long time, improve productivity.
Can be real-time monitoring the roll diameter of the solder paste on screen trigger automatically add functionality

2. Detection function of solder paste margin of stencil
Real time detection of solder paste margin (thickness) on stencil,intelligent prompt for tin filling

3. Detection functionof Stencil plugging
By compensating the light source above the stencil, CCD is used to check the mesh in real time,so as to quickly detect and judge whether the stencil is blocked after cleaning,and carry out automatic cleaning, which is a supplement to the 2D detection of PCB.

4. Automatic dispensing function
According to different printing process requirements, PCB can be accurately dispensing tin,line drawing,filing and other functional operations after printing.

5. Squeegee pressure close-loop feedback control
Built in precise digital pressure sensor control system, through the squeegee pressure feedback system, it can accurately display the original pressure value of the squeegee,intelligently adjust the depth of the squeegee pressure,ensure the constant pressure value inthe printing process and obtain the highest process control, and realize the perfect printing of high-density and fine spacing devices.

6. Temperature and humidity control function
Automatic regulation and supervision of temperature and humidity in the printing press to ensure the stable physical characteristics of printing Materials.

7. Magnetic squeegee
Magnetic adsorption squeegee blade,instead of screw hole positioning mode, convenient and quick replacement.

8. Vacuum suction plate and upperpress function
It can automatically clamp PCB of various sizes and thicknesses to effectively overcome the deformation of the board,Make sure that the tin is evenly printed.

9. Support MES system seamless docking
It can scan the 1D code 2D code on the customer PCB and record the relevant information.which can be shared with the customer MES system. MES system uses 2D code,1D code, mobile IOT and other technologies to conduct scientific management on the warehouse material preparation and prevention, incoming material picking management, material loading and error prevention,production scheduling,quality traceability,Kanban control,etc. in the SMT production process. Through the optimization process to improve the production efficiency,improve product quality,shorten the production cycle, reduce the manufacturing cost,to achieve a comprehensive and scientific traceability management,to help enterprises quickly respond to market changes, improve the core competitiveness.

10. SPI online function interface
A closed-oop system is formed by connecting with SPI.After receiving feedback information of defective SPI printing, the machine will automatically adjust the offset according to SPI feedback. The XY offset can be adjusted automatically within 3PC.and clean the stencil, improve the printing quality and production efficiency,constitute a complete printing feedback system.


Other Available Options Configuration:

Item No. Function
1 Paste Roll Height Monitor (aPRHM)
2 Internal temperature and humidity detection on the work area
3 Window 10 system
4 Upper Press Function
5 PCB Size 525 mm * 350 mm
6 PCB board support method Grid-Lock
7 Support pins or support block detection sensor
8 Squeegee holder
9 System of adding solder paste from cartridge Semko 6 Oz
10 Control - by touch screen monitor
11 PC must have (SSD)
12 Range of adjustment feets from 45 to 160 mm
13 6.1 Software can save log-files
6. 2 Log-files contain data about all possible parameters of the equipment
6.3 Discreetness of data saving may be set up without limits
6.4 Export of log-files to Excel or Access
6.5 Alarm system in case of parameters are not correspond to preset parameters
6.6 Possibility of remote export of log files
6.7 For all parameters of the equipment there will be possibility of setting up of critical value of such parameters and further actions (means stoppage or further work with indication and information in separate log-file) with marks in log-files only in case of preset parameters will go beyond critical value.
14 UPS
