It is used to detect and monitor the quanlity of solder paster printing. With the increasing precision of electronic products, chip components are becoming smaller and smaller, and the requirements for solder paster printing quanlity are gradually are gradually increasing.
Camera Resolution:5 Mega Pixels
FOV:48mm * 40mm (20 μm)

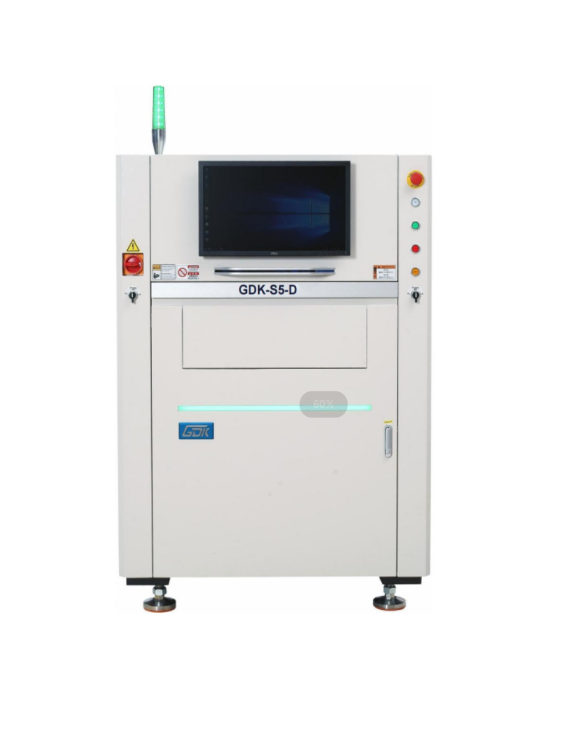

GDK Hot Sale (SPI) 3D Solder Paste Inspection High Speed Automatic Inspecting Machine For Production Line
It is used to detect and monitor the quanlity of solder paster printing. With the increasing precision of electronic products, chip components are becoming smaller and smaller, and the requirements for solder paster printing quanlity are gradually are gradually increasing.
Camera Resolution:5 Mega Pixels
FOV:48mm * 40mm (20 μm)
Production Overview:
It is used to detect and monitor the quanlity of solder paster printing. With the increasing precision of electronic products, chip components are becoming smaller and smaller, and the requirements for solder paster printing quanlity are gradually are gradually increasing. It can effectively guarantee the printing quanlity, improve the printing quanlity, reduse the defect rate of the product, save labor, and improve the production efficiency.
Technical Parameters:
| Model | GDK-S5 | GDK-S5-D | ||
| Inspecion System | Camera Rasolution | 5Mega Pixels | ||
| Lighting System | Surrounding RGB Light Source | |||
| FOV | 48mm * 40mm (20 μm) | |||
| Processing Time Per Screen | <0.7s | |||
| Inspecting Content | Area, volume, height, shape, offset, even tin | |||
| Defect type | Existence, more tin, less tin, continuous tin, offset, tip, collapse, irregular shape, insufficient height, height exceeding , etc | |||
| Max. Inspecting range | 400 μm | |||
| Solder Paste Size | 0.2mm x 0.2mm - 12mm x 12mm | |||
| Inspecting Height Precision | 1 μm | |||
| Repeatability(Size/Area/Height) | <1 μm@3sigma | |||
| Repeatability and reproducibility | <10% | |||
| Software System | Operating system | Windows 7 Ultimate 64 bit | ||
| Identification | Feature | 3D grating projection head(double head optional) | ||
| Operate | Graphical programming, convenient operation, switchable Chinese and English systems | |||
| Display | 2D/3D True Color Image | |||
| Mark Setting | Choose 2 commonly used Mark points | |||
| Programming | Support Gerber, CAD import, offline programming and manual programming | |||
| SPC | Offline SPC | Support | ||
| SPC Chart | Any time period report | |||
| Histogran/Control Chart | Volume, area, height, offset | |||
| Export File | Report(Excel), Image(jpg/bmp) | |||
| Mechanical System | PCB delivery Method | PCB fixing method: edge-locked substrate clamping; automatic access board and automatic width adjustment system, in line with SMEMA standards; track height:900±30mm | ||
| Min. PCB size | 50mm x 50mm | 50mm x 50mm | ||
| Max. PCB size | 500mm x 460mm | Double lane transmission:500mm x 330mm(one track ,four track fixed or one track, three tracks fixed according to customer needs) | ||
| PCB Thickness | 0.6mm-6mm | |||
| Board Edge Gap | Top: 3mm Bottom: 3mm(Width of transport belt contact with OCB/fixture | |||
| Delivery Speed | 1500mm/s (MAX) | |||
| Board Bending Compensation | <2mm | |||
| X,Y Platform | Driven motor | Servo Motor System | ||
| Position Precision | <1 μm | |||
| Moving Speed | 600 mm/s | |||
| Operating System | Computer PC | Industrial control computer: Intel high-end six- core CPU, 16GDDR memory, 1T hard disk | ||
| Monitor | 22 Inch LCD widescreen monitor | |||
| Others | External dimension | L(1090mm) x W(1290mm) x H(1534mm), without tri-color lights, monitor and keyboard | L(1090mm) x W(1500mm) x H(1534mm), without tri-color lights, monitor and keyboard | |
| Weight | About 750KG | About 850KG | ||
| Power requirements | AC220V±10%,50/60HZ,15A | |||
| Air consumption requirements | 4~6kg/square centimetre | |||
| Environment temperature | 10~40˚C | |||
| Relative humidity | 30-80%RH4 | |||
Functional fFeatures:
|
|

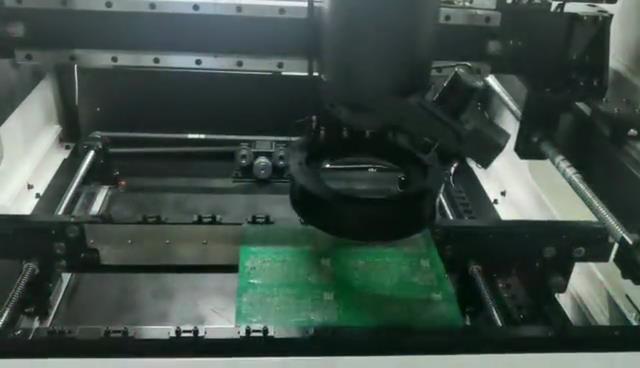

| 1, High speed can achieve maximum throughput The all-digital high-speed CCD camera cooperates with the industrial telecentric lens, high resolution, ultra wide depth of field, ultra low distortion and unique parallel light design, etc. It can clearly image the circuit board and the tall components without strabismus. 2, Plate bending compensation solution Real-time measurement and compensation of board bending (refer to ideal board), can reach less than 2mm; provide clear PCB images and measurement data online in real tim. 3, 3D raster projection head Realize shadowless 3D detection without worrying about inaccurate measurement caused by shadows; five-step phase shift algorithm based on defocused sine grating stripes, height detection accuracy up to 1μm. 4, Man-machine interface with easy operation Support Gerber, CAD import, support offline programming and manual programming, easy to operate, can switch between Chinese and English system; Through more intuitive software, display 2D/3D true color images to help users read bad; choose 2 commonly used Mark points. 5, High precision mechanical platform With AC servo motor system, coupled with precision ball screws and linear guide pairs, ensures high-speed and accurate detection capabilities, fast and stable movement, and positioning accuracy of less than 10μm. 6, Supports Offline SPC Display histogram/control chart and true-color three-dimensional stereoscopic image, and export reports and pictures at any time period to trace the root cause of badness from the detection results. |
Company information:
HTGD (GDK) is committed to take the professional line, to enrich the SMT professional and technical service experience, process improvement and effective solutions, rich practical experience to provide customers with appropriate and economical and reliable recommendations to meet the special needs of all types of customers. The company established a head office in Shenzhen and set up branch offices in Dongguan, Suzhou, Tianjin, Chongqing, Xi'an and Xiamen. At the same time, there are many branches and agents overseas, forming a strong distribution and service network in the world.
Major application range is SMT & PCB assembly, consumer electronics products, auto industry, LED assembly, medical electronics industry, etc.
1.Shenzhen HTGD Intelligent Equipment Co., Ltd established in 2008.
2.300+ staffs
3.2,000 sets machines production capability per year
4.Sales and service covers 35+ countries around the world.
5.Focus on design&research based on customer’s request
6.HTGD & GDK two brands
7.40,000 square meter advanced standard production workshop
8.ISO 9001 approval and CE certificate
9.More than 80 utility model patents and 5 invention patents
10.30000+ big customers in China, who are specialized in cell phone, home appliance spare parts, medical electrical parts, etc.
HTGD&GDK is focus on solder paste( screen printer), AOI, SPI, dispenser, loader, unloader, conveyor, reflow oven, design and produce, and provide SMT whole line service for customers around the world. Meanwhile provide THT whole line service too.
Production Line:
10000 square meters standard modern standard precision equipment production work.
After-Sales Service:
Technical support:
# From the purchase date, one year free warranty, lifelong maintenance
# Provide technical update and technical service at any time
# Software system life - long free upgrade, to ensure the latest version of the software and perfect functions
# Provide technical training according to customer needs
Service support:
# Since the date of purchase, the customer has become a lifetime member of our company and enjoys the all-day waiting service
# Make phone calls and on-site visits to customers from time to time, communicate with customers and improve related problems in a timely manner
# Provide door-to-door service, one - on - one designated service policy
Advantage, Why choose us:
1. GDK,HTGD Self-branded famous manufacture around the world
2. Self developed and owned software, Company industry experience
3. 2000 sets production capability per year
4. CE,ISO,TUV certified company
5. We have many years of SMT sales, installation and after-sales service experience.
6. We have exported the whole line of SMT equipment in North America,South America, Europe, Southeast Asia, Middle East and other countries. Many of them are new customers starting from scratch.
7. We assist customers to train professional technicians and provide technical support at any time.
8. We solve all SMT problems for our customers.
Partial Certificate Of Honor:
We are National High-tech Enterprise
We passed ISO certifications and lot of Patent certificate
All the machines have CE and ROHS certifications
SMT whole line support:
We provide SMT equipment and solutions for the whole line.
Customer Visiting:
Customer Site:
Other Products Support:
We are specilize in automatic solder paste printer, inline AOI , inline SPI, High speed glue dispenser. And we support complete SMT whole Line machine, such as pick and place machine(chip mounter),used chip mounter, reflow oven, wave soldering machine, PCB magazine /Loader/Unloader,conveyor,laser marker and etc.
Exhibition Show:
Company's cultural and recreational activities:
Organize all kinds of cultural and recreational activities for employees...
Packing: Vacuum +Wooden Box.
