SMT Automatic PCB Inspection Inline Aoi Testing Inspection Machine in SMT Production Line
High precision: multiple software analysis methods, multiple application modes, high-precision motion system;
High efficiency: one maintenance workstation confirms the detection data of multiple online machines, realizing fully automated process control.
Max PCB size: single lane:510mm x 460mm; double lane:510mm x 330mm

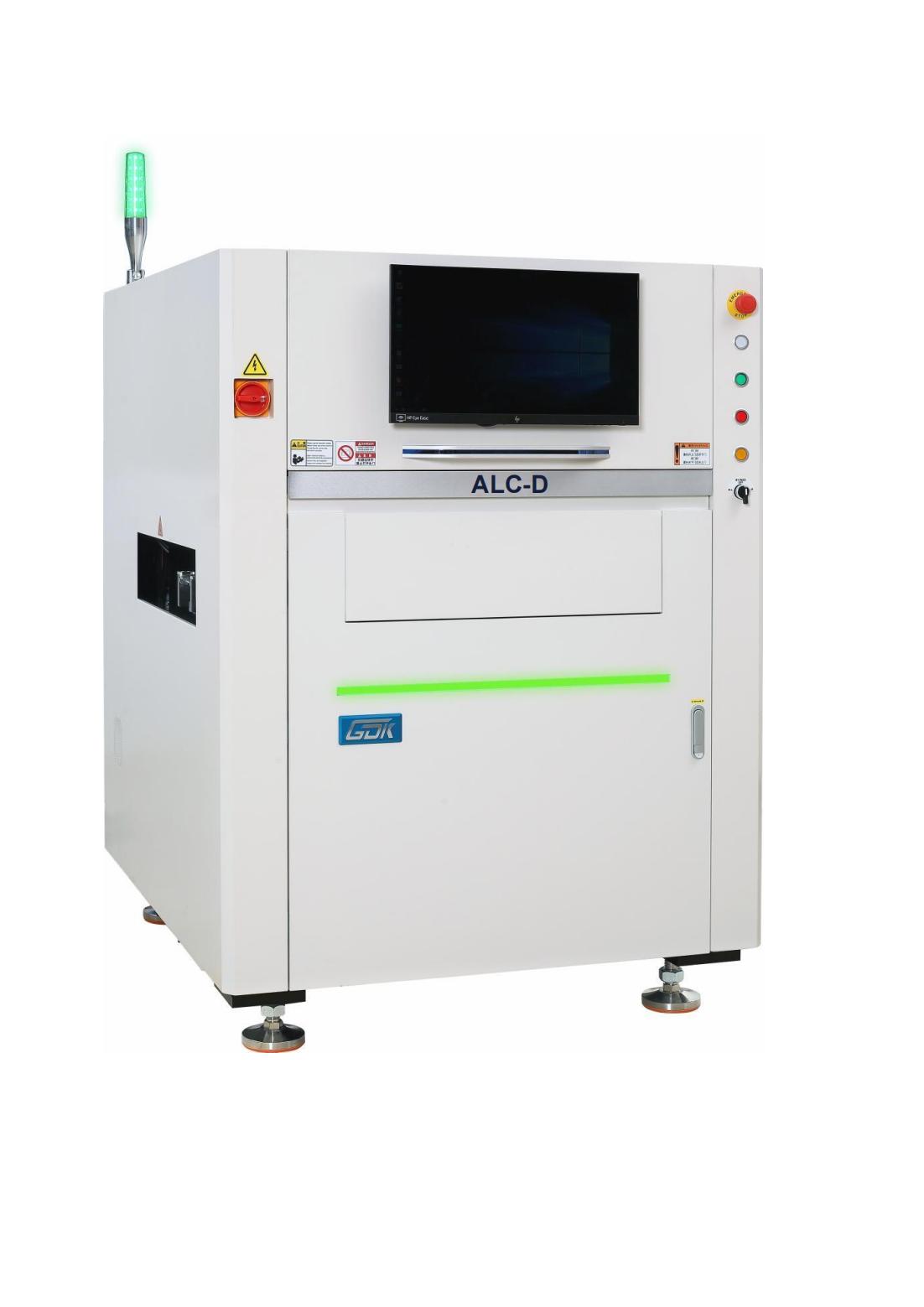

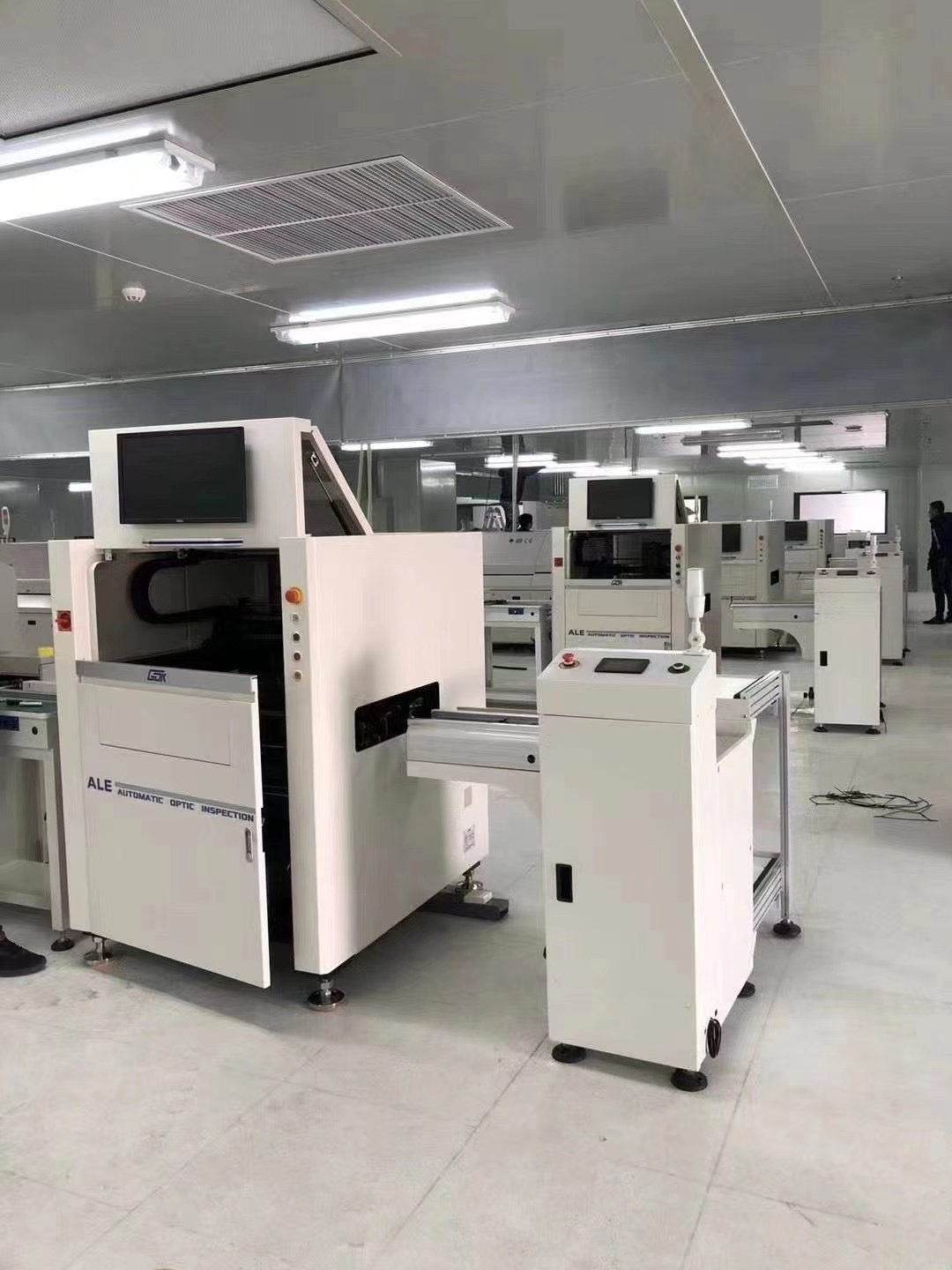

SMT Automatic PCB Inspection Inline AOI Testing Inspection Machine(ALC model) In SMT Production Line


High precision: multiple software analysis methods, multiple application modes, high-precision motion system;
High efficiency: one maintenance workstation confirms the detection data of multiple online machines, realizing fully automated process control.
Max PCB size: single lane:510mm x 460mm; double lane:510mm x 330mm



Maachine Characteristics:

1,HD color global exposure digital camera speed increase 30%
2,High depth of field telecentric lens, which can measure the solder joints on the side of high components
3,Support the detection of smt front, back and dip station
4,Support 0201 packaged component inspection
5,CAD data import, automatic linking component library, automatic color picking
6,True non-stop offline programming and program update
7,MES data docking to realize intelligent factory
8,Support multi-line centralized management and remote service


Technical Parameters:

Model ALC ALC-D
 PCB Specifications
Max. PCB size (X x Y) 510mm x 460mm (Double lane) :510mm x 330mm
(Single lane):510mm x 600mm
Min. PCB size (Y x X) 50mm x 50mm 50mm x 50mm
PCB Thickness 0.6mm-6mm
Board Edge Gap Top: 3mm   Bottom: 3mm (Width of transport belt contact with PCB/fixture)
Max. Bottom Gap 50mm
Max. Top Gap 35mm
Delivery Speed 1500mm/s (MAX)
Transmission height from the ground 900±30mm
Transmission lane direction Left-Right,Right-Left,Left-Left,Right-Right
Transmission method One Stage lane
PCB clamping method Edge locking substrate clamping
Image   parameters
Camera GigE Vision (Gigabit network interface), Resolution: 2448 x 2048(5 Mega Pixels)
FOV 36mm x 30mm
Resolution 15 μm
Lighting System Multi-angle surrounding LED light source
Performance Parameyers
Inspecting Contents Missing parts, misalignment, tilted feet, virtual soldering, offset, pole reversal, tombstone,bridging, less tin, floating pins, bent pins, etc
Equipment
Power requirements AC220V±10%,50/60HZ,1.8kVA
Compressed air requirements 4~6Kg/cm2
Operating system Windows  10
External dimension 1090mm(L) x 1290mm(W) x 1534mm(H)(Without light,monitor and keyboard) L(1090mm) x W(1500mm) x H(1534mm),(without tri-color lights, monitor and keyboard)
Machine weight About  750KG About  850KG
Environment temperature 4~40˚C
Absolute humidity 25-80%RH4
Communication Method Standard SMEMA Connection
