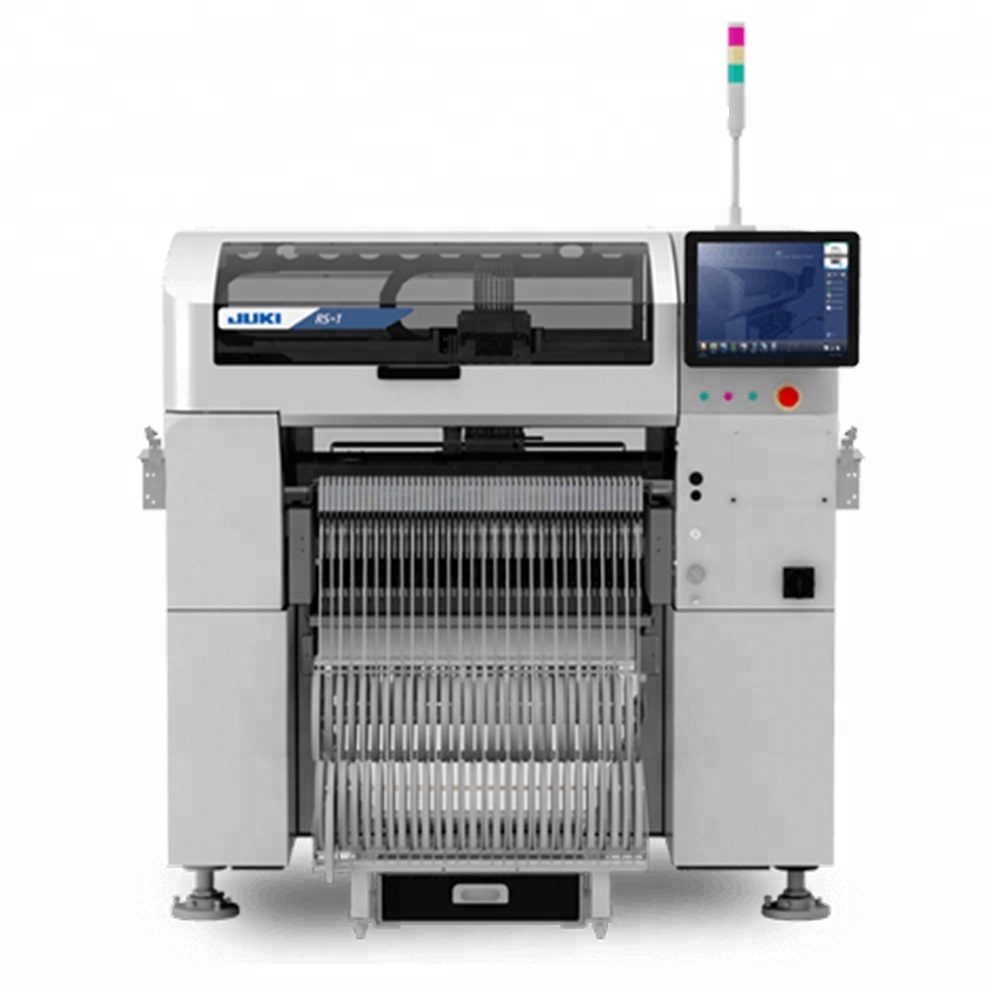

Juki Smart chip Mounter RS-1r high speed SMT Pick and Place Machine for PCB Assembly Line


Juki Smart Chip Mounter RS-1r High Speed SMT Pick and Place Machine for PCB Assembly Line


Item Fast Smart Modular Mounter
Conveyor specification Standard 150mm conveyor extensions,
upstream and downstream
250mm conveyor extensions,
upstream and downstream
Board size Minimum 50×50 mm
Maximum 1 buffer 650×370 mm(Single clamping)
950×370 mm(double clamping) 1,100×370 mm(double clamping) 1,200×370 mm(double clamping)
3 buffers 360×370 mm 500×370 mm 600×370 mm
Component height 25 mm
Component size 0201*1
~74 mm/150×50 mm
Placement speed Optimum 47,000CPH
IPC9850 31,000CPH
Placement accuracy ±35μm(Cpk>=1)
Feeder inputs max.112*2
Power supply AC200 ~ 415V*3 .3-phases
Apparent power 2.2kVA
Operating air pressure 0.5±0.05MPa
Air consumption 200 l/min for internal vacuum generator, 50 l/min with optional vacuum pump
Machine dimensions (W×D×H)*4 1,500×1,810×1,440 mm 1,800×1,810×1,440 mm 2,000×1,810×1,440 mm,
Mass(approximately) 1,700kg


Recognitions system 10 / 27/ 54 mm view camera
Oparations system Rear-side operation unit / keyboard (front only)
Inspection function Coplanarity sensor / Component Verification System(CVS)*5
Conveyor Conveyor extention *6 / support pin / support sponge
Electrical protection CE compatible specification / Ground-fault interrupter
Force Control Force control unit / Force control nozzle
Software*5 JaNets / IFS-NX / Flexline CAD
Component handling
and feeders
Feeder Trolley RF feeder only / RF-EF dual servo *7) / Electric tape feeder (RF/EF*7) / EF feeder adapter*7/
Electric stick feeder*7(Type-N/Type-W) / Matrix tray server TR8SR, TR5SNX, TR5DNX / Matrix tray changer
TR6SNV, TR6DNV / Dual tray server TR1RB / Nonstop oparation function / Tray Holder / IC collection belt /
Tape reel mounting base(for RF / for EF) / Splicing jig / Electric Trolley Power Station PW02*8
Others RS-1R/ RS-1 nozzles(with or without RFID tags) / Splicing tape / Big foot / Offset placement after solder screen-printing Solder lighting / Mini-signal light / non-stop operation / FCS calibration jig / large ATC /
vacuum pump

Juki Smart Chip Mounter RS-1r High Speed SMT Pick and Place Machine for PCB Assembly Line


Juki Smart Chip Mounter RS-1r High Speed SMT Pick and Place Machine for PCB Assembly Line

SMT Automatic High Speed Pick and Place Machine Juki Used Machine Used Chip Mounter RS-1r
