PCB maximum width:400 mm (optional :610 mm)
Transport speed:400-2000 mm/min, Chain guide at same speed

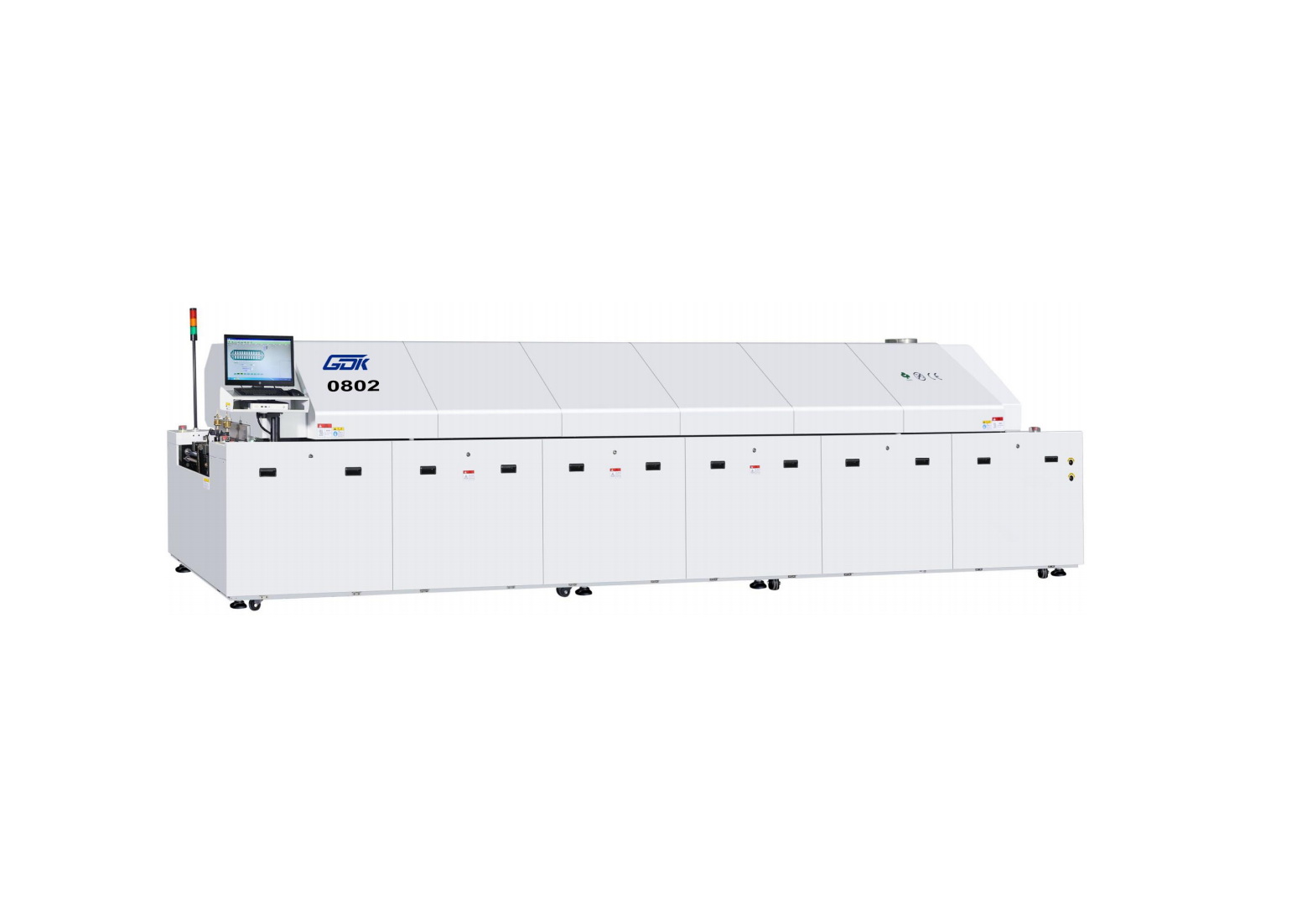

GDK Series 8 Zones Single Lane Air Reflow Soldering Machine Automatic Reflow Oven With Central Support System
Overview:
1) The heat conversion rate is higher, the temperature rise rate of up to 2 ºC / sec, the wind pressure, the same capacity can be achieved than the imported model 5-10 ºC temperature setting, to further reduce the hot air on the PCB And the micro-damage components.
2)Temperature zone heat flow using a strong convection mode, the adjacent temperature range of the maximum temperature up to 50 ºC, especially for radiators and other large parts welding.
3) The temperature zone adopts independent PID control, and the temperature control precision is high.
4) Software easy to operate, simple, can be any call, modify, storage parameters, query history alarm.
5) The use of imported high temperature motor, long-term use, quality and stability.
6) The Heater adopts the heating wire structure and the unique external wiring way, the maintenance replacement is simple and convenient, and the heating wire has long life and high heating efficiency.
Detailed description | |
Exterior dimensions | L5250*W1420*H1520 mm |
Main color | Industrial computers white |
Net weight | Approx/2650KG |
Exhaust capacity | 10 m³/min×2 channels |
Power supply | 3 x 5 lines 380 V |
Power | Start power 30 KW, working power 9 KW |
Heating Time | About 25 mins |
Transverse temperature difference | ±1.5ºC |
Temperature control accuracy | ±1ºC |
Temperature control range | Room ~300ºC |
PCB maximum width | 400 mm (optional :610 mm) |
Product height | on board 45mm |
Transport direction | Left in right out (optional: optional right in left out) |
Guide rail fixing mode | Front end fixing (optional: back end fixing) |
Guide rail height | 900±15mm |
Transport speed | 400-2000 mm/min, Chain guide at same speed |
Parameter storage | Automatic saving of operation and alarm records + manual operation to save process parameters setting |
Abnormal alarm | Standard temperature deviation, speed deviation and air running fault, alarm function of drop board, acousto-optic alarm for power cut off |
Lubricant filling | Automatic manual switching |
Equipment configuration | |
Number of heating/cooling areas | Up 8 Under 8 |
Number of heating/cooling areas | Up 2 Under 0 |
Control system | Siemens PLC+ Modular PLC+PID Control Windows 10, Free Switching in English and Chinese Online |
Temperature control mode | PID closed-loop control SSR drive |
Transport system | Single guide |
Transport control mode | Imported inverter + imported transport motor |
Guide rail structure | Nickel-manganese Steel Chain Plating 35B Single Buckle and Pin Shaft |
Guide rail width | 50 mm-400mm (50 mm-610mm optional) |
Upper cover start | Electric opening of upper cover for cleaning in furnace |
UPS power supply | Standby power |
Heating Rectifier Plate Structure | Thickened aluminium sheet |
Cooling mode | Cooling of external water cooler |
Packing mode of transport | General packing + provincial land transportation |
Warranty | Warranty period: two years (two years of non-human malfunction, replacement of repair parts provided free of charge by equipment supplier, alloy track, heating module and high temperature motor for five years) |
Detail Picture:
1. Extended temperature zone and aluminum outlet rectifier plate (imported aluminum plate)
2.Dynamic balance adjustment machine and high temperature air transport module.
3.Main regulating system of rail with guide rod and screw rod.
4.Heater
5.Transport tensioning structure.

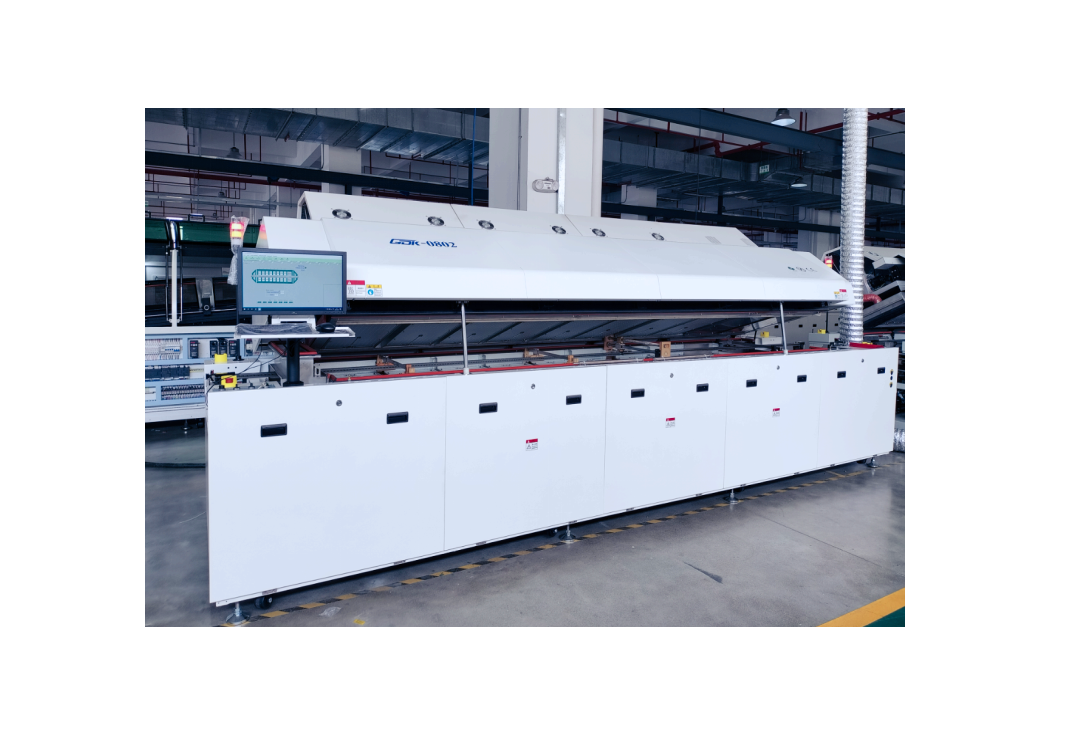

6.Power Hood lift and PIS furnace temperature real time monitoring system.
7.Electric control part (Siemens PLC + Schneider low voltage apparatus and delta
frequency conversion + Crydom SSR) .
Company Information:
HTGD (GDK) is committed to take the professional line, to enrich the SMT professional and technical service experience, process improvement and effective solutions, rich practical experience to provide customers with appropriate and economical and reliable recommendations to meet the special needs of all types of customers. The company established a head office in Shenzhen and set up branch offices in Dongguan, Suzhou, Tianjin, Chongqing, Xi'an and Xiamen. At the same time, there are many branches and agents overseas, forming a strong distribution and service network in the world.
Major application range is SMT & PCB assembly, consumer electronics products, auto industry, LED assembly, medical electronics industry, etc.
1.Shenzhen HTGD Intelligent Equipment Co., Ltd established in 2008.
2.300+ staffs
3.2,000 sets machines production capability per year
4.Sales and service covers 35+ countries around the world.
5.Focus on design&research based on customer’s request
6.HTGD & GDK two brands
7.40,000 square meter advanced standard production workshop
8.ISO 9001 approval and CE certificate
9.More than 80 utility model patents and 5 invention patents
10.30000+ big customers in China, who are specialized in cell phone, home appliance spare parts, medical electrical parts, etc.
HTGD&GDK is focus on solder paste( screen printer), AOI, SPI, dispenser, loader, unloader, conveyor, reflow oven, design and produce, and provide SMT whole line service for customers around the world. Meanwhile provide THT whole line service too.
Production Line:
10000 square meters standard modern standard precision equipment production work.
After-Sales Service:
Technical support:
# From the purchase date, one year free warranty, lifelong maintenance
# Provide technical update and technical service at any time
# Software system life - long free upgrade, to ensure the latest version of the software and perfect functions
# Provide technical training according to customer needs
Service support:
# Since the date of purchase, the customer has become a lifetime member of our company and enjoys the all-day waiting service
# Make phone calls and on-site visits to customers from time to time, communicate with customers and improve related problems in a timely manner
# Provide door-to-door service, one - on - one designated service policy
Advantage, Why choose us:
1. GDK,HTGD Self-branded famous manufacture around the word
2. Self developed and owned software, Company industry experience
3. 2000 sets production capability per year
4. CE,ISO,TUV certified company
5. We have many years of SMT sales, installation and after-sales service experience.
6. We have exported the whole line of SMT equipment in Russia, Iran, Vietnam, Malaysia and other countries. Many of them are new customers starting from scratch.
7. We assist customers to train professional technicians and provide technical support at any time.
8. We solve all SMT problems for our customers.
Partial Certificate Of Honor:
SMT whole line support:
We provide SMT equipment and solutions for the whole line.
Other Products Support:
Exhibition Show:
Customer visited factory:
Our activity high light part:
Packing: Vacuum +Wooden Box.
------------FAQ----------------------------------------------------
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.
Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.
