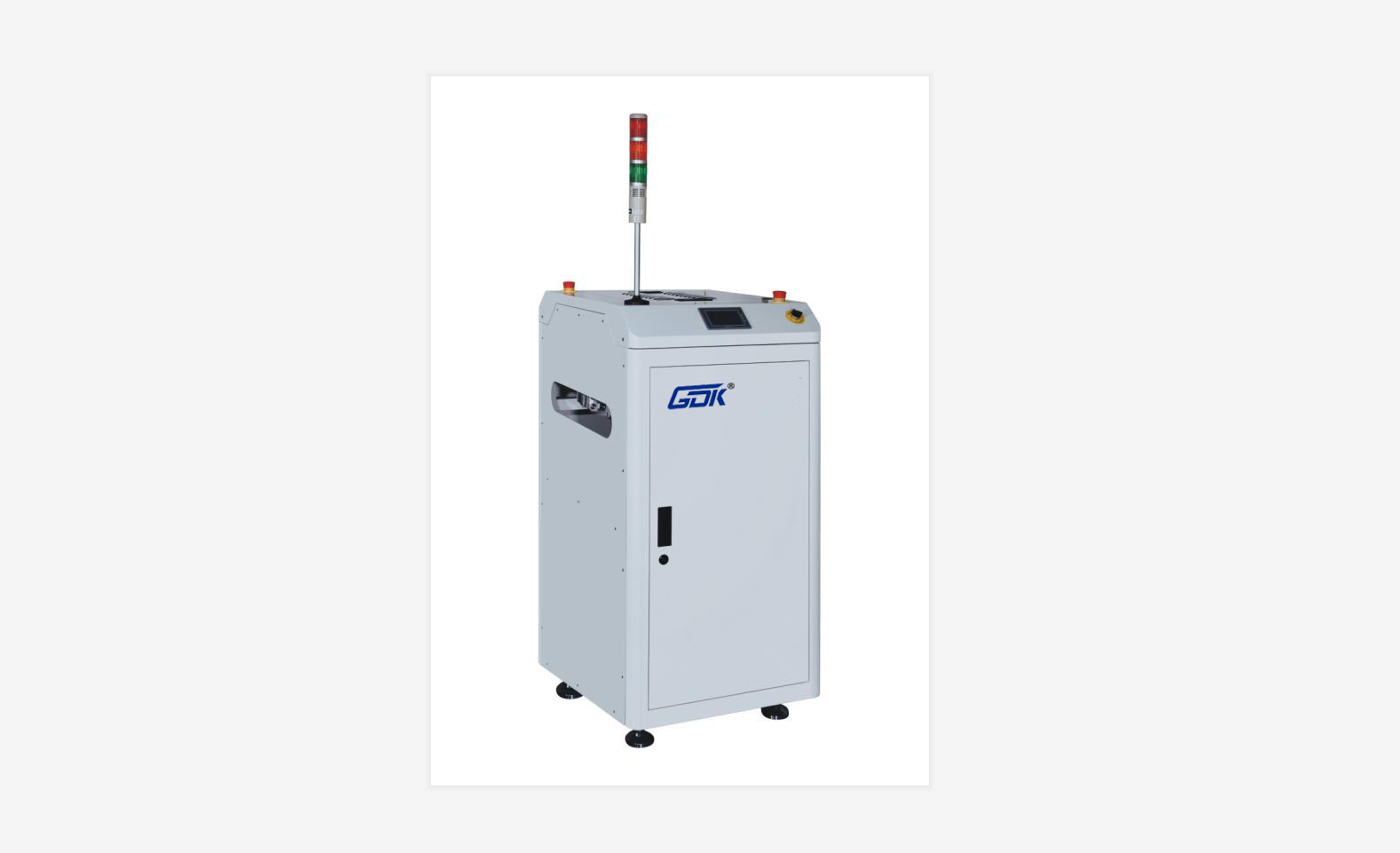

Apply to flipper on double-sided PCB.
  设备特点 Features

1 适用于SMT产线上，进行双面板翻转作业目的 Apply to flipper on double-sided PCB
2 灵活翻转动作，顺畅地与上下线设备进行连接 Flexible flip action, smoothly connect with up and down equipment
3 翻转动作采用步进电机驱动 Flip action is driven by stepper motor
4 全封闭式作业空间，安全可靠 Fully enclosed working space, safe and reliable
5 带有光电保护感应器，进一步提升安全性 With photoelectric protection sensor to further enhance safety
6 缓冲减速设计平稳 Buffer deceleration smoothly
7 具备直通功能 With By-pass function
8 三菱PLC控制 Mitsubishi PLC control
9 触摸屏操作 Touch screen
10 兼容SMEMA接口 Compatible SMEMA interface


型号/Model   GDK-FB-390
外型尺寸 Dimension L600xW840xH1400mm
导轨调宽 Track width 50-390mm
运输速度 Conveyor speed 0-4M/min
工作高度 Process height 900±20mm
传送方向 Flow direction L→R or R→L
板材重量 Board weight Max 2kg
板材厚度 Board thickness Min 0.6mm
整机重量 Weight 140kg
电源需求 Power requirement 220Vac 50/60Hz ,1ph
气压要求 Air requirement 0.4-0.6 Mpa;Max 10L/min
