HELLER High Quality SMT Reflow Soldering Machine Full Automatic Leadfree Reflow Oven For PCB Production Line
Products Description :
Best value SMT Reflow Oven in the market. Designed for Low Cost of Ownership.
The 1700 models support high mix / medium volume throughput... at speeds up to 24 inches (60 centimeters) per minute, while conserving valuable factory floor space. Rapid response times and precise temperature controls assure process uniformity, regardless of component density or board loading, with identical profile performance in either air or nitrogen.
Highest Yields And Tight Process Control
- The most efficient heat transfer from extra high volume, high-velocity, heating modules, producing heater module response of less than one second to temperature changes of less than 0.1ºC, thereby maintaining profile integrity for heavy board loads.
- Wide process window for "universal profiling" - allows many different boards to be run on a single temperature profile
- Advanced 5 thermocouple PCB profiling and process parameter logging capability with the capacity to store up to 500 temperature recipes and 500 profile graphs
Heller Industries Model 1707MK7 | ||
Model | 1707MK7 (Air) | 1707MK7 (Nitrogen) |
Electric Supply | ||
Power Input (3 Phase) Standard | 480 volts | 480 volts |
Breaker Size | 100 amps @ 480v | 100 amps @ 480v |
kW | 7 - 12 Continuous | 7 - 12 Continuous |
Typical Run Current | 20 - 30 amps @ 480v | 20 - 30 amps @ 480v |
Optional Power Inputs Available | 208/240/380/400/415/440/480 VAC | 208/240/380/400/415/440/480 VAC |
Frequency | 50/60 Hz | 50/60 Hz |
Sequential Zone Turn On | S | S |
Dimensions | ||
Overall Oven Dimensions | 142" (360cm) L x 60”(152cm) W x 57” (144cm) H |
142" (360cm) L x 60”(152cm) W x 57” (144cm) H |
Typical Net Weight | 3197 lbs. (1450kg) | 3197 lbs. (1450kg) |
Typical Shipping Weight | 3814 lbs. (1730 kg) | 3814 lbs. (1730 kg) |
Typical Shipping Dimension | 370 x 185 x 185 cm | 370 x 185 x 185 cm |
Computer Control | ||
AMD or Intel Based Computer | S | S |
Flat Screen Monitor w/Mount | S | S |
Windows Operating System | Windows 10 Home | Windows 10 Home |
Auto Start Software | S | S |
Data Logging | S | S |
Password Protection | S | S |
LAN Networking | O | O |
Inert Atmosphere | ||
Minimum PPM Oxygen | - | 10-25 PPM* |
Waterless Cooling w/ Flux | ||
Separation System | - | O |
Nitrogen On/Off Valve | - | O |
Oxygen Monitoring System | - | O |
Nitrogen Standby System | - | O |
Typical Nitrogen Consumption | - | 500 - 700 SCFH ** |
Additional Features | ||
KIC Profiling Software | S | S |
Signal Light Tower | S | S |
Powered Hood Lift | S | S |
Five (5)Thermocouple Profiling | S | S |
Redundant Alarm Sensors | O | O |
Intelligent Exhaust System | O | O |
KIC Profiler / ECD Profiler | O | O |
Center Board Support | O | O |
Board Drop Sensor | O | O |
Board Counter | O | O |
Bar Code Reader | O | O |
Custom Paint & Decal | O | O |
Battery Backup for Conveyor and PC | O | O |
GEM/SECS Interfacing | O | O |
Mesh Belt Conveyor | ||
Height From Floor | 36.6" + 2.4" (93 cm + 6 cm) | 36.6" + 2.4" (93 cm + 6 cm) |
Maximum PCB Width | 22" (56 cm) | 22" (56 cm) |
Space Required Between PCB's | 0.0" (0.0 cm) | 0.0" (0.0 cm) |
Conveyor Length On-Load | 18" (46 cm) * | 18" (46 cm) * |
Conveyor Length Off-Load | 18" (46 cm) * | 18" (46 cm) * |

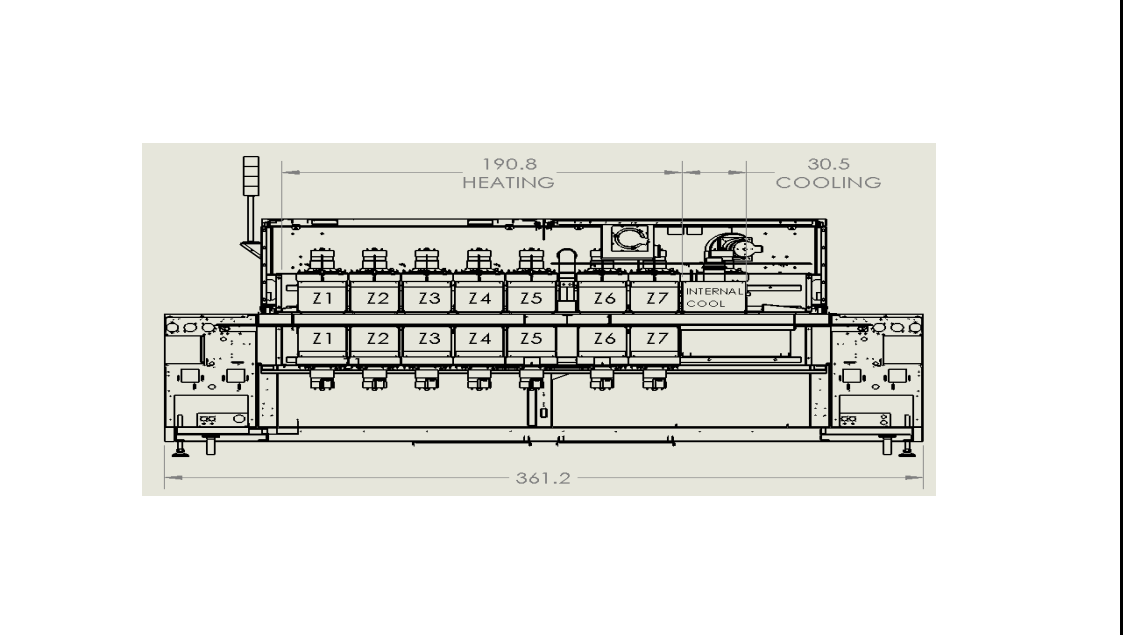

Heated Tunnel Length | 75" (190 cm) | 75" (190 cm) |
Process Clearance Above Mesh Belt | 2.3" (5.8 cm) | 2.3" (5.8 cm) |
Mesh Belt Pitch | 0.5" (1.27 cm) | 0.5" (1.27 cm) |
Maximum Conveyor Speed | 74"/Min (188 cm/min.) | 74"/Min (188 cm/min.) |
Conveyor Direction Left to Right | S | S |
Conveyor Direction Right to Left | O | O |
Conveyor Speed Control | Closed Loop | Closed Loop |
Edge Hold Conveyor System Option | ||
Height from Floor – Standard | 37.8" + 2.4" (96 cm + 6 cm) | 37.8" + 2.4" (96 cm + 6 cm) |
Height from Floor – Optional | 35.4" + 2.4" (90 cm + 6 cm) |
35.4" + 2.4" (90 cm + 6 cm) |
Clearance Above & Below Conveyor Pins | 1.15" (2.9 cm) | 1.15" (2.9 cm) |
Length of PCB Support Pins | .187" (4.75 mm) | .187" (4.75 mm) |
3 mm long support pins | O | O |
Minimum/Maximum Board Width | 2" – 22" (5 – 56 cm) 24” (61cm) Optional** |
2" – 22" (5 – 56 cm) 24” (61cm) Optional** |
Power Width Adjustment | S | S |
Computer Controlled Width Adjust | O | O |
Auto Lubrication System | O | O |
Forced Convection Zones | ||
Top & Bottom | 7 | 7 |
Heater Type | Instant response open coil | Instant response open coil |
Heater Material | Nichrome | Nichrome |
Profile Change Time | 5 – 15 minutes | 5 - 15 minutes |
Temperature Control | ||
Accuracy of Temperature Controller | ± .1C | ± .1C |
Cross-Belt Temperature Tolerance | ±3.0°C | ±3.0°C |
Heater Wattage Per Zone | 5400 w*** | 5400 w*** |
Temperature Range Standard | 60-350C | 60-350C |
High Temperature Up to 450C | O | O |
Cooling Systems | ||
Number of Cooling Zones Standard | 1 | 1 |
Cooling zone Length | 31cm | 43cm |
Additional Cooling Zones | O | O |
Water Cooling | - | O |
